Pedestal-Mounted S19214 Series

Start here to configure your pedestal-mounted eye or eye/face wash.

NOTE: To activate stainless steel options, select a SS-yoke configuration.

Pipe Material

1 1/4" piping assembly manufactured of one of the following materials:

  • Galvanized steel with BradTect® safety yellow coating
  • Type 304 corrosion-resistant stainless steel
  • Type 316 corrosion-resistant stainless steel
  • Chrome plated red brass

Pipe threading is available in NPT for U.S. and BSP for International.

Ball Valve

1/2" stay-open eye and eye/face wash valve manufactured of the following materials and supplied with either type 304 or 316 stainless steel pull rod and handle:

  • Chrome-plated brass
  • Type 316 stainless steel

Self-closing shower valves are not ANSI Z358.1 compliant.

* Non-SS yokes are not available with stainless steel configurations.

Eye or Eye/Face Wash

Eyewash The Halo eyewash system offers a high performance rinsing platform that provides rapid relief to an individual's eyes that have been injured by chemicals or particulate. The eyewash provides 5.1 gpm of water at a safe velocity while maintaining its effectiveness. The eyewash is protected by flip open dust covers that open when the product is activated or by a full bowl dust cover that activates the unit when it is opened.

Eye/Face Wash The Halo eye/face wash system offers a high performance rinsing platform that provides rapid relief to an individual's eyes and face that have been injured by chemicals or particulate. This system provides the most complete face wash available in the market. The eye/face wash provides 5.1 gpm of water at a safe velocity while maintaining its effectiveness. The eye/face wash is protected by flip open dust covers that open when the product is activated or by a full bowl dust cover that activates the unit when it is opened.

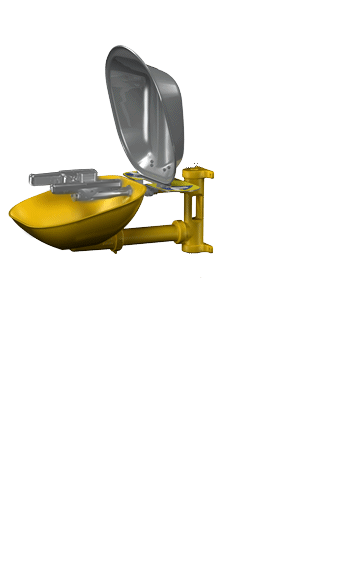

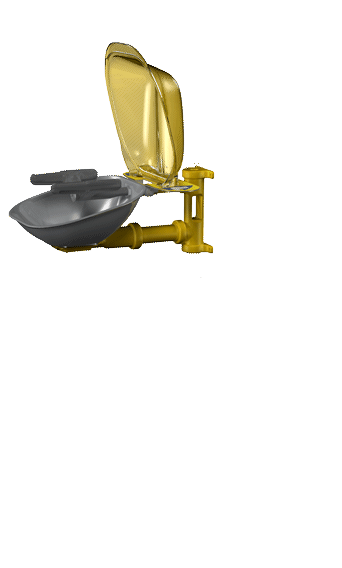

Bowl and Dust Cover

Bowl is constructed of yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel. Dust cover is constructed of transparent yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel.

*Not available with barrier-free configurations.

Activation

Stainless steel push handle with optional food pedal.

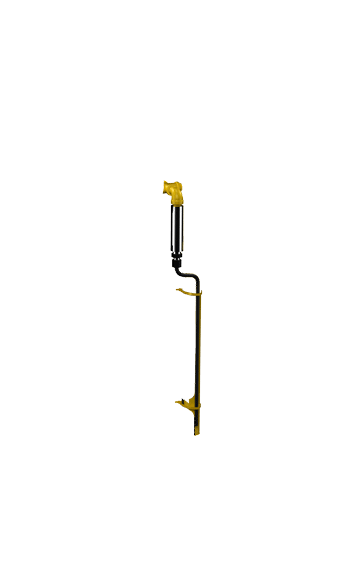

Drench Hose and Backflow Prevention

Drench Hose Perforated sprayhead with protective sprayhead cover is ABS plastic and provides soft spray for cleansing eyes and face. Chrome-plated brass valve with extended handle stays open once handle is squeezed. 8' (2438mm) yellow reinforced thermoplastic hose has 3/8" NPT male thread. Burst strength is 450 PSI. Attachment Kit includes 1/2" NPT supply, fittings and hanger for attaching hose to eyewashes.

Backflow Prevention Series N9 dual-check backflow preventer has a chrome-nickel plated brass body and includes atmospheric vent for continuous pressure applications. The check valve comes with 3/8" female dual NPT female inlet and outlet connections. It can sustain a maximum pressure of 125 PSI (8.6 bars). The check valve is certified to CSA B64.8. Series 9D dual-check backflow preventer with intermediate atmospheric vent can be used under continuous pressure. The primary check valve uses a rubber disc seating adjacent to a mating rubber part to ensure tight closing. A second check valve employs a rubber disc-to-metal seating.

Series 9D dual-check backflow preventer with intermediate atmospheric vent can be used under continuous pressure. The primary check valve uses a rubber disc seating adjacent to a mating rubber part to ensure tight closing. A second check valve employs a rubber disc-to-metal seating.

Freeze and Scald Protection

Freeze protection valves protect pipes from bursting. Scald protection valves protect the end user in warm climates.
